基础生命周期
src/index.js
js
import React from "./lib/react";
import ReactDOM from "./lib/react-dom";
class Counter extends React.Component {
constructor() {
super();
this.state = {
number: 0,
};
console.log("Counter 1.constructor");
}
componentWillMount() {
console.log("Counter 2.componentWillMount");
}
handleAdd = () => {
this.setState({ number: this.state.number + 1 });
};
render() {
console.log("Counter 3.render");
return (
<div>
<p>{this.state.number}</p>
<button onClick={this.handleAdd}>+</button>
</div>
);
}
componentDidMount() {
console.log("Counter 4.componentDidMount");
}
shouldComponentUpdate() {
console.log("Counter 5.shouldComponentUpdate");
return true;
}
componentWillUpdate() {
console.log("Counter 6.componentWillUpdate");
}
componentDidUpdate() {
console.log("Counter 7.componentDidUpdate");
}
}
ReactDOM.render(<Counter />, document.getElementById("root"));
/*

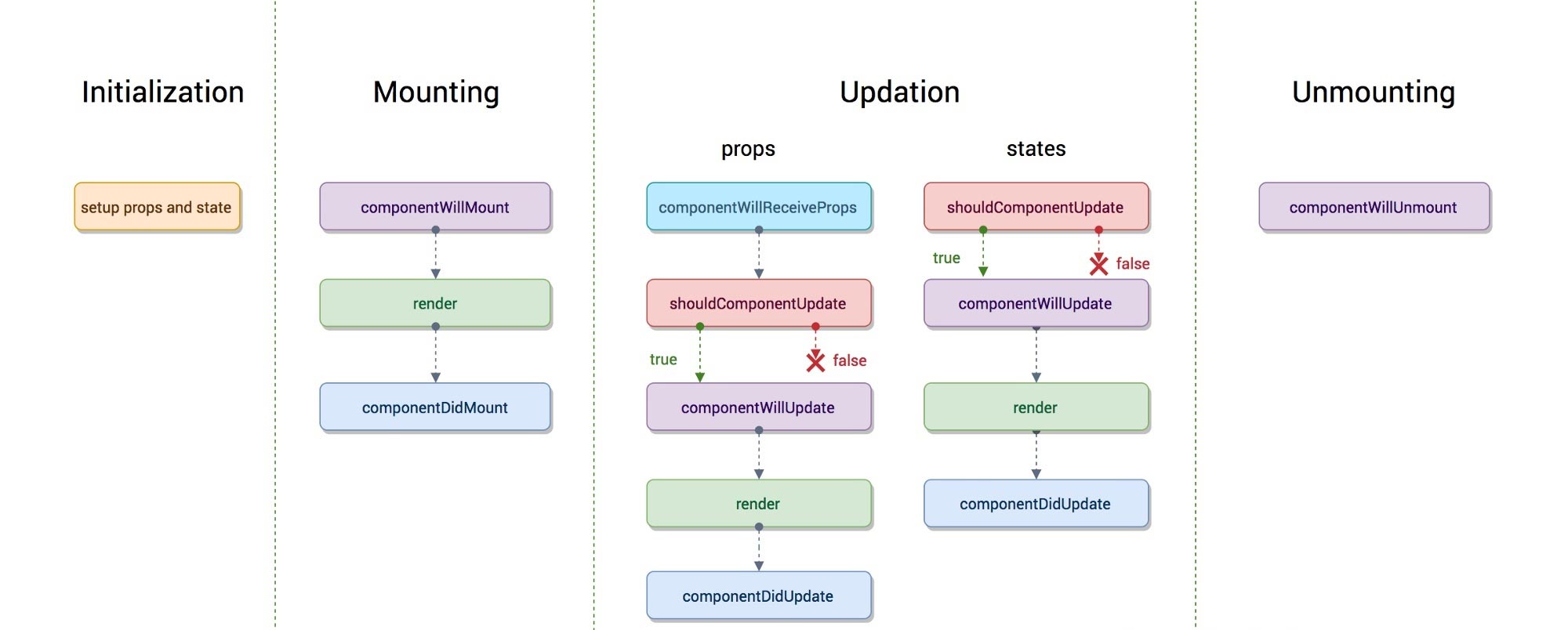

初次渲染:constructor,componentWillMount,render,componentDidMount
更新:shouldComponentUpdate, componentWillUpdate, componentDidUpdate
*/lib/react-dom.js

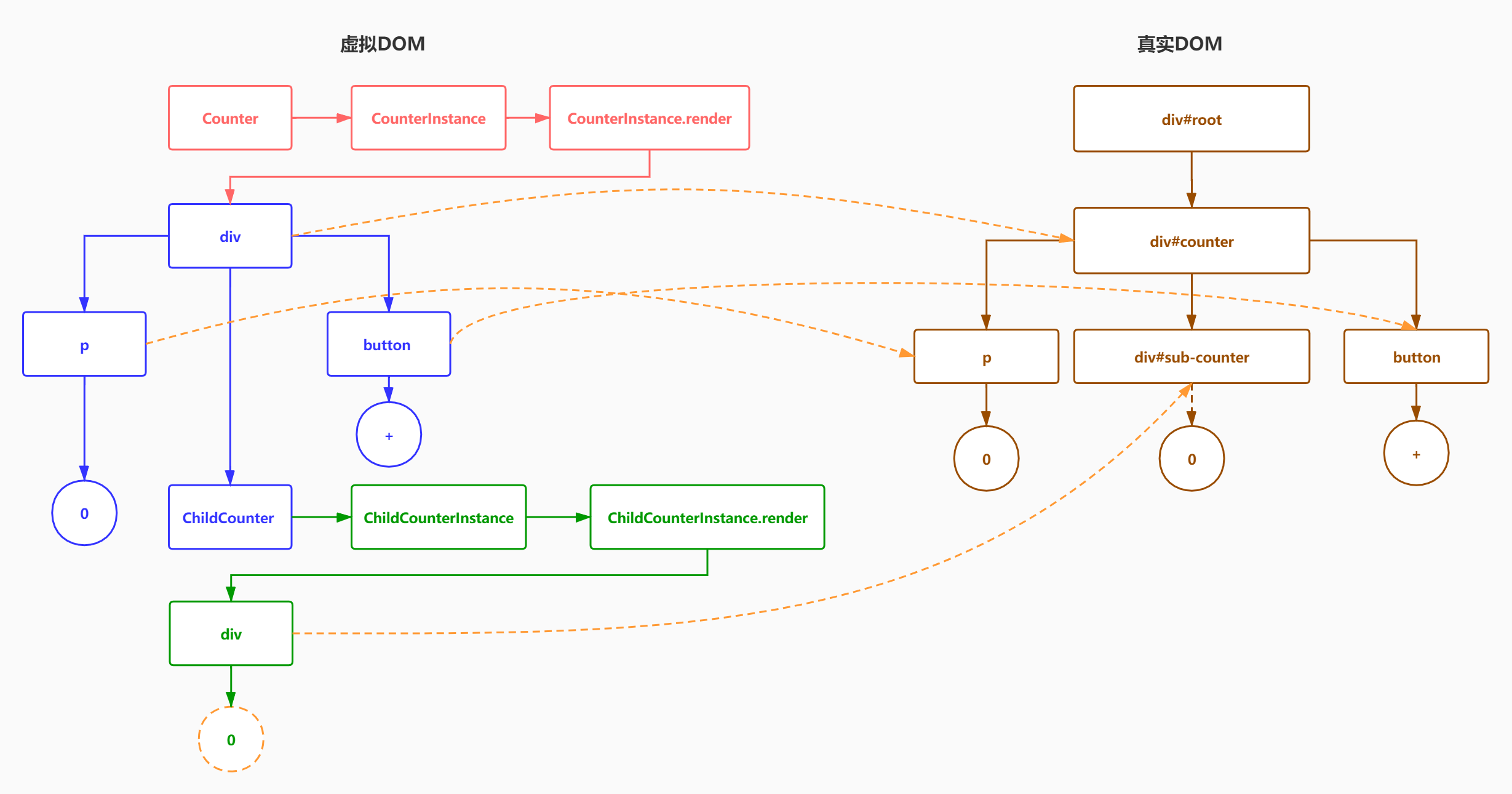

- 需要注意的是调用
componentDidMount的时机是在createDOM之后,因为如果存在子组件的情况下,当父组件调用render后会进入子组件的流程,当子组件componentDidMount后再父组件componentDidMount
js{68,76}
import { addEvent } from "./event";
import { REACT_FORWARD_REF, REACT_TEXT } from "./element-types";
/**
* 要把虚拟DOM转换成真实DOM并且挂载到容器中
* @param {*} vdom 虚拟DOM
* @param {*} container 容器
*/
function render(vdom, container) {
mount(vdom, container);
}
function mount(vdom, container) {
let newDOM = createDOM(vdom);
container.appendChild(newDOM);
}
function createDOM(vdom) {
const { props, type, ref } = vdom;
let dom; // 真实的DOM节点
if (type && type.$$typeof === REACT_FORWARD_REF) {
// 挂载forward组件
return mountForwardComponent(vdom);
} else if (type === REACT_TEXT) {
dom = document.createTextNode(props); // props是一个字符串
} else if (typeof type === "function") {
if (type.isReactComponent) {
// 类组件
return mountClassComponent(vdom);
}
return mountFunctionComponent(vdom); // 函数组件
} else {
dom = document.createElement(type);
}
if (props) {
// 如果props存在,更新属性
updateProps(dom, {}, props);
if (typeof props.children === "object" && props.children.type) {
// 说明只有一个子节点
mount(props.children, dom); // 递归渲染子节点
} else if (Array.isArray(props.children)) {
reconcileChildren(props.children, dom);
}
}
// 创建真实DOM的时候和虚拟DOM进行关联
vdom.dom = dom;
if (ref) ref.current = dom;
return dom;
}
function mountForwardComponent(vdom) {
const { type, props, ref } = vdom;
let renderVdom = type.render(props, ref);
vdom.oldRenderVdom = renderVdom;
return createDOM(renderVdom);
}
function mountFunctionComponent(vdom) {
const { props, type: FunctionComponent } = vdom;
let renderVdom = FunctionComponent(props); // renderVdom才是要渲染的虚拟DOM
// 保存老的虚拟DOM
vdom.oldRenderVdom = renderVdom;
return createDOM(renderVdom);
}
function mountClassComponent(vdom) {
const { props, type: ClassComponent, ref } = vdom;
// 先创建类组件实例
let classInstance = new ClassComponent(props);
if (ref) ref.current = classInstance; // 类组件添加ref
if (classInstance.componentWillMount) classInstance.componentWillMount();
// 调用render方法返回renderVdom
let renderVdom = classInstance.render();
vdom.classInstance = classInstance; // vdom和实例进行关联
// 类的实例上保存老的虚拟DOM,同时给vdom上也添加oldRenderVdom指向老的vdom
classInstance.oldRenderVdom = vdom.oldRenderVdom = renderVdom;
// 这里需要在createDOM之后调用componentDidMount,是因为还有子组件的原因,父组件挂载完成是要在子组件挂载完成才能完成
let dom = createDOM(renderVdom);
if (classInstance.componentDidMount) classInstance.componentDidMount();
return dom;
}
function reconcileChildren(children, dom) {
children.forEach((child) => {
mount(child, dom);
});
}
function updateProps(dom, oldProps = {}, newProps) {
for (let key in newProps) {
// 先遍历新的属性
if (key === "children") continue;
if (key === "style") {
let styleObj = newProps[key];
for (let attr in styleObj) {
dom.style[attr] = styleObj[attr];
}
} else if (/^on[A-Z]*/.test(key)) {
// 绑定的事件
addEvent(dom, key.toLowerCase(), newProps[key]);
// dom[key.toLowerCase()] = newProps[key]
} else {
// dom.className = 'title'
dom[key] = newProps[key];
}
}
// 再遍历老属性,如果新属性中没有直接删除掉
for (let key in oldProps) {
if (!newProps.hasOwnProperty(key)) {
dom[key] = null;
}
}
}
/**
* 根据虚拟DOM找到真实DOM
* @param {*} vdom
* 如果是像div节点,这样是可以通过vdom.dom找到真实DOM
* 如果是类组件或者函数组件有两种情况
* 1、创建函数/类组件的时候在虚拟DOM上通过oldRenderVdom绑定了虚拟DOM
* 2、如果是组件嵌套组件,那就需要进行递归查找了
*/
export function findDOM(vdom) {
if (!vdom) return null;
if (vdom.dom) {
// vdom对应原生的组件
return vdom.dom;
} else {
// 类组件或函数组件
let renderVdom = vdom.classInstance
? vdom.classInstance.oldRenderVdom
: vdom.oldRenderVdom;
return findDOM(renderVdom);
}
}
export function compareTwoVdom(parentDOM, oldVdom, newVdom) {
let oldDOM = findDOM(oldVdom); // 老的真实DOM
let newDOM = createDOM(newVdom); // 新的真实DOM
parentDOM.replaceChild(newDOM, oldDOM); // 新的替换老的
}
const ReactDOM = {
render,
};
export default ReactDOM;lib/Component.js
js{52-65,85-87}
import { compareTwoVdom, findDOM } from "./react-dom";
export const updateQueue = {
isBatchingUpdate: false, // 表示是否正在更新
updaters: new Set(),
batchUpdate() {
// 批量更新
updateQueue.isBatchingUpdate = false;
for (let updater of updateQueue.updaters) {
updater.updateComponent();
}
updateQueue.updaters.clear();
},
};
class Updater {
constructor(classInstance) {
this.classInstance = classInstance;
// 需要支持批量更新,所以这里必须是数组
this.pendingStates = [];
}
addState(newState) {
this.pendingStates.push(newState);
this.emitUpdate();
}
emitUpdate() {
if (updateQueue.isBatchingUpdate) {
// 如果是批量更新
updateQueue.updaters.add(this); // 把当前updater添加到set中
} else {
// 否则就直接更新
this.updateComponent();
}
}
updateComponent() {
const { classInstance, pendingStates } = this;
if (pendingStates.length > 0) {
// 表示有更新的状态
shouldUpdate(classInstance, this.getState());
}
}
getState() {
const { classInstance, pendingStates } = this;
let { state } = classInstance; // 实例的老状态
pendingStates.forEach((nextState) => {
// 合并新老状态
state = { ...state, ...nextState };
});
return state;
}
}
function shouldUpdate(classInstance, nextState) {
let willUpdate = true;
classInstance.state = nextState;
if (
classInstance.shouldComponentUpdate &&
!classInstance.shouldComponentUpdate()
) {
willUpdate = false;
}
if (willUpdate && classInstance.componentWillUpdate) {
classInstance.componentWillUpdate();
}
if (willUpdate) {
classInstance.forceUpdate();
}
}
export class Component {
static isReactComponent = true;
constructor(props) {
this.props = props;
this.updater = new Updater(this);
}
setState(newState) {
this.updater.addState(newState);
}
forceUpdate() {
// 老的虚拟DOM
let oldRenderVdom = this.oldRenderVdom;
// 找到真的DOM
let oldDOM = findDOM(oldRenderVdom);
// 调用render方法获取新的虚拟DOM
let newRenderVdom = this.render();
compareTwoVdom(oldDOM.parentNode, oldRenderVdom, newRenderVdom);
this.oldRenderVdom = newRenderVdom;
if (this.componentDidUpdate) {
this.componentDidUpdate();
}
}
}子组件生命周期

src/index.js
js
import React from "./lib/react";
import ReactDOM from "./lib/react-dom";
class ChildCounter extends React.Component {
constructor(props) {
super(props);
console.log("ChildCounter 1.constructor");
}
componentWillMount() {
console.log("ChildCounter 2.componentWillMount");
}
render() {
console.log("ChildCounter 3.render");
return <p>{this.props.count}</p>;
}
componentDidMount() {
console.log("ChildCounter 4.componentDidMount");
}
shouldComponentUpdate() {
console.log("ChildCounter 5.shouldComponentUpdate");
return true;
}
componentWillUpdate() {
console.log("ChildCounter 6.componentWillUpdate");
}
componentDidUpdate() {
console.log("ChildCounter 7.componentDidUpdate");
}
}
class Counter extends React.Component {
constructor() {
super();
this.state = {
number: 0,
};
console.log("Counter 1.constructor");
}
componentWillMount() {
console.log("Counter 2.componentWillMount");
}
handleAdd = () => {
this.setState({ number: this.state.number + 1 });
};
render() {
console.log("Counter 3.render");
return (
<div>
<p>{this.state.number}</p>
<ChildCounter count={this.state.number} />
<button onClick={this.handleAdd}>+</button>
</div>
);
}
componentDidMount() {
console.log("Counter 4.componentDidMount");
}
shouldComponentUpdate() {
console.log("Counter 5.shouldComponentUpdate");
return true;
}
componentWillUpdate() {
console.log("Counter 6.componentWillUpdate");
}
componentDidUpdate() {
console.log("Counter 7.componentDidUpdate");
}
}
ReactDOM.render(<Counter />, document.getElementById("root"));
