Webpack Tapable 事件流机制

webpack 的插件机制

webpack 实现插件机制的方式
- 创建 - webpack 在内部徐对象上创建各种钩子
- 注册 - 插件将自己的方法注册到对应钩子上，交给 webpack
- 调用 - webpack 编译过程中，会适时地触发相应钩子，也就触发了插件方法
webpack 本质上是一种事件流机制，工作流程就是将各个插件串联起来，而实现这一切的核心就是 Tapable,webpack 中最核心负责编译的 Compiler 和负责创建 bundle 的 Compilation 都是 Tapable 的实例
通过事件的注册和监听，触发 webpack 生命周期中的函数方法

钩子有以下几个

const {
  SyncHook,
  SyncBailHook,
  SyncWaterfallHook,
  SyncLoopHook,
  AsyncParallelHook,
  AsyncParallelBailHook,
  AsyncSeriesHook,
  AsyncSeriesBailHook,
  AsyncSeriesWaterfallHook,
} = require("tapable");

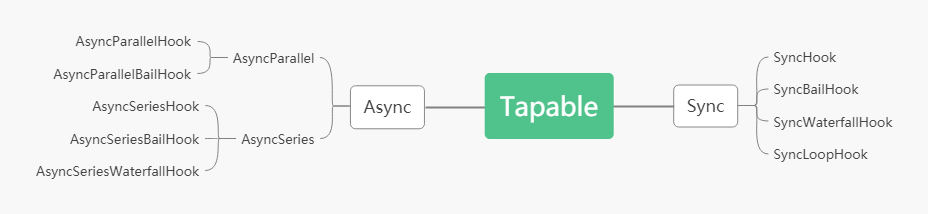

tapable 分类

按同步异步分类

Hook 类型可以分为同步Sync和异步Async,异步又分为并行和串行

同步
1. SyncHook:
2. SyncBailHook:
3. SyncWaterfallHook:
4. SyncLoopHook:
异步
- AsyncParallel
  1. AsyncParallelHook
  2. AsyncParallelBailHook
- AsyncSeries
  1. AsyncSeriesHook
  2. AsyncSeriesBailHook
  3. AsyncSeriesWaterfallHook

tapable

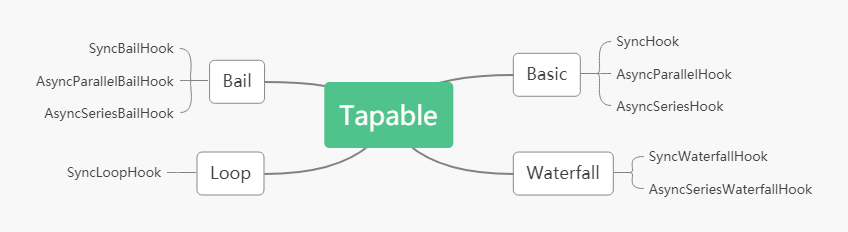

按返回值分类

Basic

SyncHook
AsyncParallelHook
AsyncSeriesHook

Bail

SyncBailHook
AsyncParallelBailHook
AsyncSeriesBallHook

Waterfall

SyncWaterfallHook
AsyncSeriesWaterfallHook

Loop

SyncLoopHook

tapable

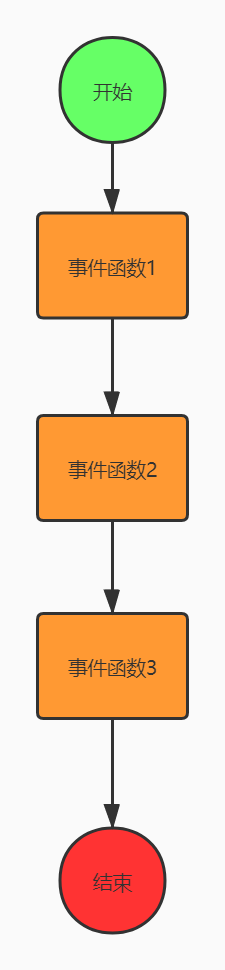

Basic

执行每一个事件函数，不关心函数的返回值

BasicTapable

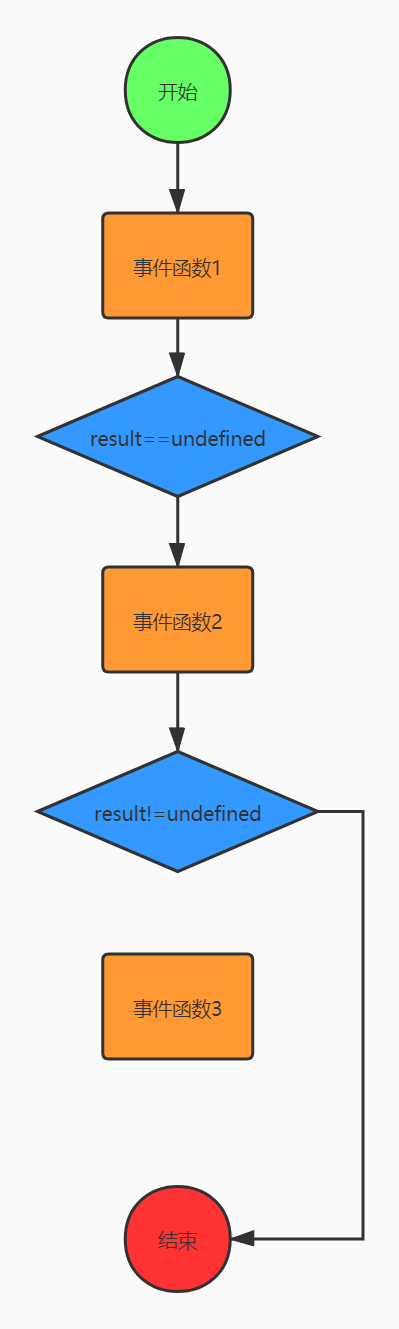

Bail

执行每一个事件函数，遇到第一个不为空的结果就返回，不再继续执行。

BailTapable

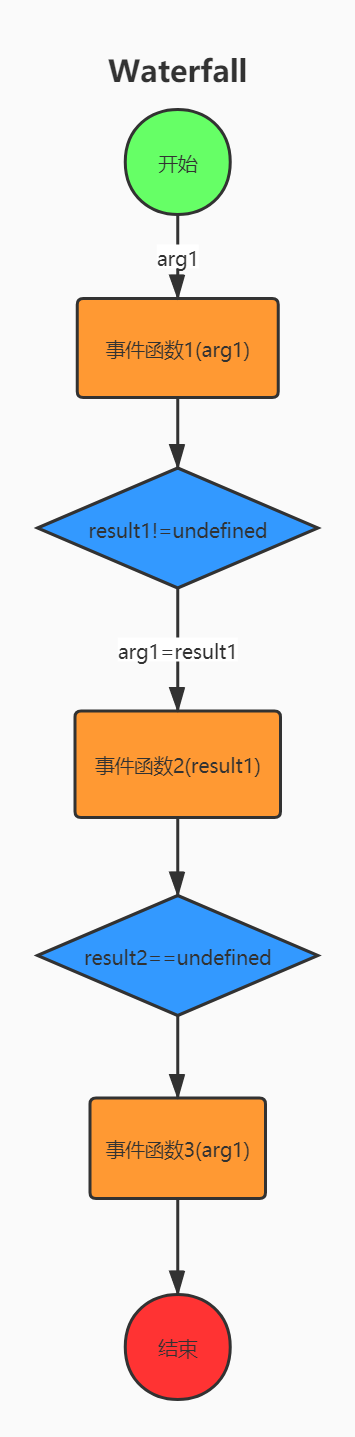

Waterfall

如果前一个事件函数的结果不为空result !== undefined，则 result 会作为后一个事件函数的第一个参数

WaterFALL

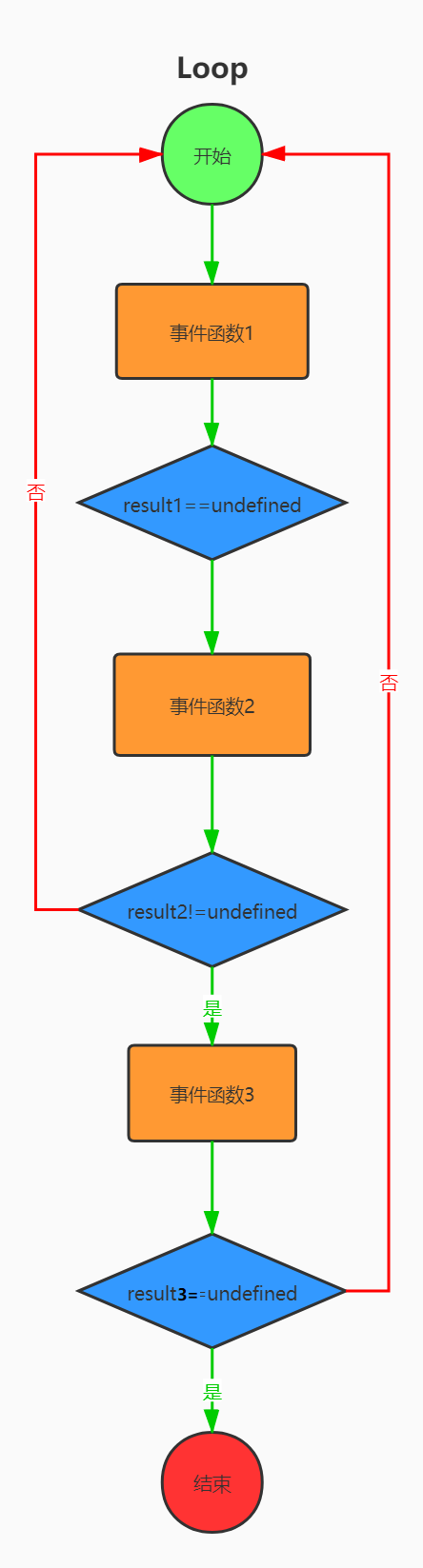

Loop

不停的循环执行事件函数，直到所有函数结果result === undefined

LoopTapable

tapable 使用

SyncHook

同步钩子
所有的构造函数都接收一个可选参数，参数是一个参数名组成的字符串数组
参数名可以任意填写，但是参数数组长度必须要和实际接受的参数个数一致
如果回调函数不接收参数，可以传入空数组
在实例化的时候传入的数组长度有用，但是值没有用途
执行call时，参数个数和实例化时数组长度有关
回调的时候是按先入先出的顺序执行

const { SyncHook } = require("tapable");
const hook = new SyncHook(["name", "age"]);
hook.tap("1", (name, age) => {
  console.log(1, name, age);
  return 1;
});
hook.tap("2", (name, age) => {
  console.log(2, name, age);
  return 2;
});
hook.tap("3", (name, age) => {
  console.log(3, name, age);
  return 3;
});

hook.call("test", 10);

/**
 *  1 test 10
 *  2 test 10
 *  3 test 10
 */

SyncBailHook

同步保险钩子
BailHook 中的回调函数也是顺序执行的
调用 call 时传入的参数也可以传给回调函数
当回调函数返回非undefined值的时候会停止调用后续的回调

const { SyncBailHook } = require("tapable");
const hook = new SyncBailHook(["name", "age"]);
hook.tap("1", (name, age) => {
  console.log(1, name, age);
  //return 1;
});
hook.tap("2", (name, age) => {
  console.log(2, name, age);
  return 2;
});
hook.tap("3", (name, age) => {
  console.log(3, name, age);
  return 3;
});

hook.call("test", 10);
// 1 test 10
// 2 test 10

SyncWaterfallHook

同步瀑布钩子
SyncWaterfallHook 表示如果上一个回调函数的结果不为 undefined,则可以作为下一个回调函数的第一个参数
回调函数接受的参数来自于上一个函数的结果
调用 call 传入的第一个参数，会被上一个函数的非undefined结果替换
当回调函数返回 非undefined 不会停止回调栈的调用

const { SyncWaterfallHook } = require("tapable");

const hook = new SyncWaterfallHook(["name", "age"]);
hook.tap("1", (name, age) => {
  console.log(1, name, age);
  return 1;
});
hook.tap("2", (name, age) => {
  console.log(2, name, age);
  return;
});
hook.tap("3", (name, age) => {
  console.log(3, name, age);
  return 3;
});

hook.call("test", 10);
// 1 test 10
// 2 1 10
// 3 1 10

SyncLoopHook

同步循环钩子
SyncLoopHook 的特点是不停的循环执行回调函数，直到函数结果是 undefined
要注意的是每次循环都是从头开始循环的

const { SyncLoopHook } = require("tapable");
//当回调函数返回非undefined值的时候会停止调用后续的回调

let hook = new SyncLoopHook(["name", "age"]);
let counter1 = 0;
let counter2 = 0;
let counter3 = 0;
hook.tap("1", (name, age) => {
  console.log(1, "counter1", counter1);
  if (++counter1 == 1) {
    counter1 = 0;
    return;
  }
  return true;
});
hook.tap("2", (name, age) => {
  console.log(2, "counter2", counter2);
  if (++counter2 == 2) {
    counter2 = 0;
    return;
  }
  return true;
});
hook.tap("3", (name, age) => {
  console.log(3, "counter3", counter3);
  if (++counter3 == 3) {
    counter3 = 0;
    return;
  }
  return true;
});
hook.call("test", 10);
// 12 123 12 123 12 123

AsyncParallelHook

异步并行钩子

tap 注册

let { AsyncParallelHook } = require("tapable");
let queue = new AsyncParallelHook(["name"]);
console.time("cost");
queue.tap("1", function (name) {
  console.log(1);
});
queue.tap("2", function (name) {
  console.log(2);
});
queue.tap("3", function (name) {
  console.log(3);
});
queue.callAsync("test", (err) => {
  console.log(err);
  console.timeEnd("cost");
});
// 1
// 2
// 3
// undefined
// cost: 13.635ms

tapAsync 注册

异步注册，去阿奴任务完成后执行最终回调

let { AsyncParallelHook } = require("tapable");
let queue = new AsyncParallelHook(["name"]);
console.time("cost");
queue.tapAsync("1", function (name, callback) {
  setTimeout(function () {
    console.log(1);
    callback();
  }, 1000);
});
queue.tapAsync("2", function (name, callback) {
  setTimeout(function () {
    console.log(2);
    callback();
  }, 2000);
});
queue.tapAsync("3", function (name, callback) {
  setTimeout(function () {
    console.log(3);
    callback();
  }, 3000);
});
queue.callAsync("test", (err) => {
  console.log(err);
  console.timeEnd("cost");
});
// 1
// 2
// 3
// undefined
// cost: 3.011s

tapPromise 注册

promise 注册钩子，全部完成后执行才算成功

let { AsyncParallelHook } = require("tapable");
let queue = new AsyncParallelHook(["name"]);
console.time("cost");
queue.tapPromise("1", function (name) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(1);
      resolve();
    }, 1000);
  });
});
queue.tapPromise("2", function (name) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(2);
      resolve();
    }, 2000);
  });
});
queue.tapPromise("3", function (name) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(3);
      resolve();
    }, 3000);
  });
});
queue.promise("test").then(() => {
  console.timeEnd("cost");
});
// 1
// 2
// 3
// cost: 3.015s

AsyncParallelBailHook

异步并行保险
带保险的异步并行执行
有一个任务返回值不为undefined就直接结束
对于 promise 来说，resolve 还是 reject 并没有区别，区别在于是否传递参数

tap

let { AsyncParallelBailHook } = require("tapable");
let queue = new AsyncParallelBailHook(["name"]);
console.time("cost");
queue.tap("1", function (name) {
  console.log(1);
  return "Wrong";
});
queue.tap("2", function (name) {
  console.log(2);
});
queue.tap("3", function (name) {
  console.log(3);
});
queue.callAsync("test", (err) => {
  console.log(err);
  console.timeEnd("cost");
});
// 1
// null
// cost: 22.781ms

tapAsync

let { AsyncParallelBailHook } = require("tapable");
let queue = new AsyncParallelBailHook(["name"]);
console.time("cost");
queue.tapAsync("1", function (name, callback) {
  console.log(1);
  callback("Wrong");
});
queue.tapAsync("2", function (name, callback) {
  console.log(2);
  callback();
});
queue.tapAsync("3", function (name, callback) {
  console.log(3);
  callback();
});
queue.callAsync("test", (err) => {
  console.log(err);
  console.timeEnd("cost");
});
// 1
// Wrong
// cost: 9.156ms

tapPromise

let { AsyncParallelBailHook } = require("tapable");
let queue = new AsyncParallelBailHook(["name"]);
console.time("cost");
queue.tapPromise("1", function (name) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(1);
      //对于promise来说，resolve还reject并没有区别
      //区别在于你是否传给它们的参数
      resolve(1);
    }, 1000);
  });
});
queue.tapPromise("2", function (name) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(2);
      resolve();
    }, 2000);
  });
});

queue.tapPromise("3", function (name) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(3);
      resolve();
    }, 3000);
  });
});

queue.promise("test").then(
  (result) => {
    console.log("成功", result);
    console.timeEnd("cost");
  },
  (err) => {
    console.error("失败", err);
    console.timeEnd("cost");
  }
);
// 1
// 成功 1
// cost: 1.017s
// 2
// 3

AsyncSeriesHook

异步串行
任务一个一个执行,执行完上一个执行下一个

tapAsync

let { AsyncSeriesHook } = require("tapable");
let queue = new AsyncSeriesHook(["name"]);
console.time("cost");
queue.tapAsync("1", function (name, callback) {
  setTimeout(function () {
    console.log(1);
  }, 1000);
});
queue.tapAsync("2", function (name, callback) {
  setTimeout(function () {
    console.log(2);
    callback();
  }, 2000);
});
queue.tapAsync("3", function (name, callback) {
  setTimeout(function () {
    console.log(3);
    callback();
  }, 3000);
});
queue.callAsync("test", (err) => {
  console.log(err);
  console.timeEnd("cost");
});
// 1

tapPromise

let { AsyncSeriesHook } = require("tapable");
let queue = new AsyncSeriesHook(["name"]);
console.time("cost");
queue.tapPromise("1", function (name) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(1, name);
      resolve();
    }, 1000);
  });
});
queue.tapPromise("2", function (name) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(2, name);
      resolve();
    }, 2000);
  });
});
queue.tapPromise("3", function (name) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(3, name);
      resolve();
    }, 3000);
  });
});
queue.promise("test").then((data) => {
  console.log(data);
  console.timeEnd("cost");
});
// 1 test
// 2 test
// 3 test
// undefined
// cost: 6.065s

AsyncSeriesBailHook

异步串行保险
只要有一个返回了非undefined的值就直接结束

tapAsync

let { AsyncSeriesBailHook } = require("tapable");
let queue = new AsyncSeriesBailHook(["name"]);
console.time("cost");
queue.tapAsync("1", function (name, callback) {
  setTimeout(function () {
    console.log(1);
    callback("wrong");
  }, 1000);
});
queue.tapAsync("2", function (name, callback) {
  setTimeout(function () {
    console.log(2);
    callback();
  }, 2000);
});
queue.tapAsync("3", function (name, callback) {
  setTimeout(function () {
    console.log(3);
    callback();
  }, 3000);
});
queue.callAsync("test", (err) => {
  console.log(err);
  console.timeEnd("cost");
});
// 1
// wrong
// cost: 1.019s

tapPromise

let { AsyncSeriesBailHook } = require("tapable");
let queue = new AsyncSeriesBailHook(["name"]);
console.time("cost");
queue.tapPromise("1", function (name) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(1);
      resolve();
    }, 1000);
  });
});
queue.tapPromise("2", function (name, callback) {
  return new Promise(function (resolve, reject) {
    setTimeout(function () {
      console.log(2);
      reject("失败了");
    }, 2000);
  });
});
queue.tapPromise("3", function (name, callback) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(3);
      resolve();
    }, 3000);
  });
});
queue.promise("test").then(
  (data) => {
    console.log(data);
    console.timeEnd("cost");
  },
  (error) => {
    console.log(error);
    console.timeEnd("cost");
  }
);
// 1
// 2
// 失败了
// cost: 3.025s

AsyncSeriesWaterfallHook

异步瀑布
只要有一个返回了非undefined 的值就直接结束

tapAsync

let { AsyncSeriesWaterfallHook } = require("tapable");
let queue = new AsyncSeriesWaterfallHook(["name", "age"]);
console.time("cost");
queue.tapAsync("1", function (name, age, callback) {
  setTimeout(function () {
    console.log(1, name, age);
    callback(null, 1);
  }, 1000);
});
queue.tapAsync("2", function (data, age, callback) {
  setTimeout(function () {
    console.log(2, data, age);
    callback(null, 2);
  }, 2000);
});
queue.tapAsync("3", function (data, age, callback) {
  setTimeout(function () {
    console.log(3, data, age);
    callback(null, 3);
  }, 3000);
});
queue.callAsync("test", 10, (err, data) => {
  console.log(err, data);
  console.timeEnd("cost");
});
// 1 test 10
// 2 1 10
// 3 2 10
// null 3
// cost: 6.033s

tapPromise

let { AsyncSeriesWaterfallHook } = require("tapable");
let queue = new AsyncSeriesWaterfallHook(["name"]);
console.time("cost");
queue.tapPromise("1", function (name) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(name, 1);
      resolve(1);
    }, 1000);
  });
});
queue.tapPromise("2", function (data) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(data, 2);
      resolve(2);
    }, 2000);
  });
});
queue.tapPromise("3", function (data) {
  return new Promise(function (resolve) {
    setTimeout(function () {
      console.log(data, 3);
      resolve(3);
    }, 3000);
  });
});
queue.promise("test").then((err) => {
  console.timeEnd("cost");
});
// test 1
// 1 2
// 2 3
// cost: 6.049s

tapable 实现

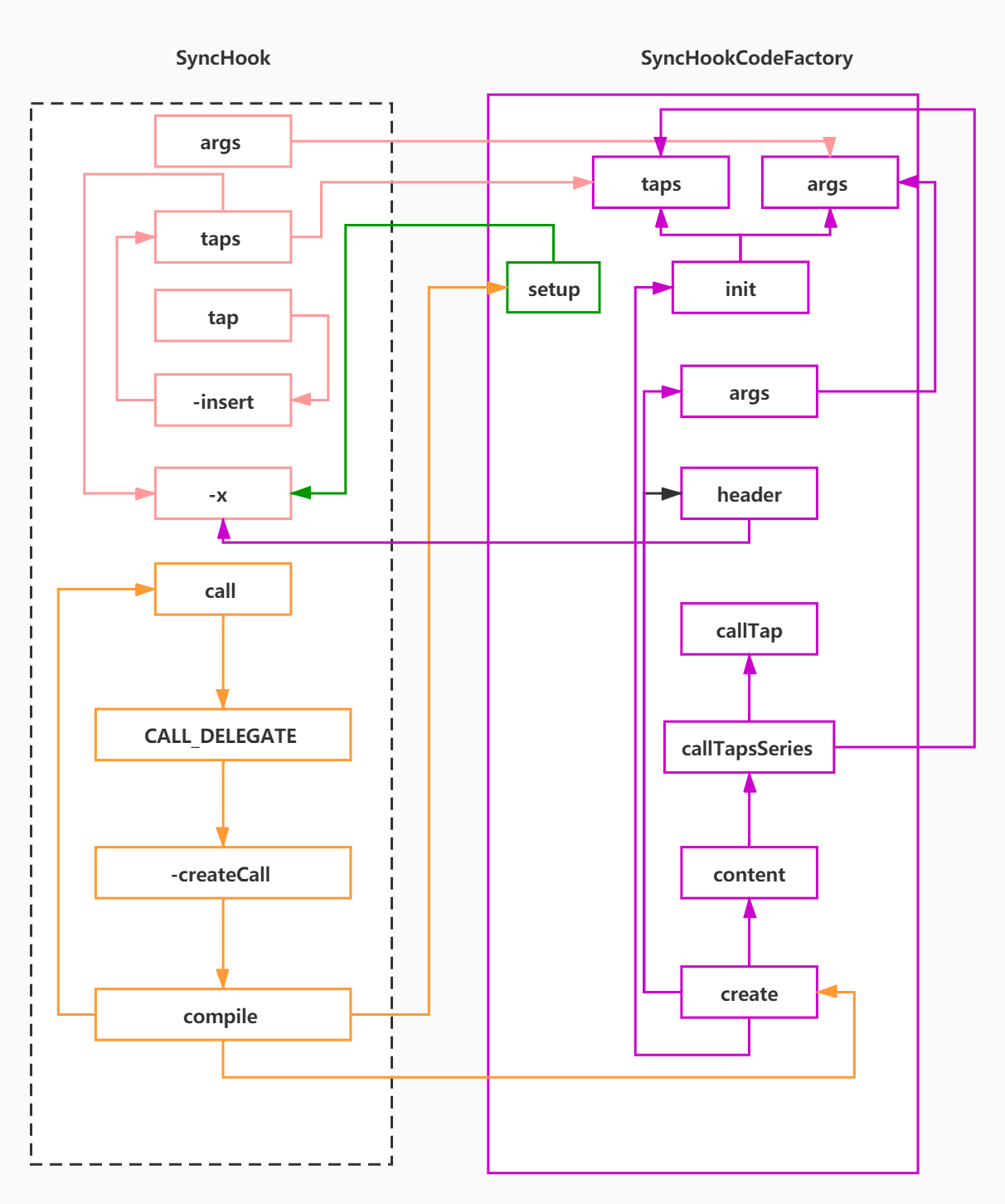

实现原理图

只实现了成功，没有考虑失败的情况，具体源代码生成的call,callAsync,promise方法调整HookCodeFactory中的create以及callTaps即可

SyncHook

同步实现

SyncHook.js

const Hook = require("./Hook");
const HookCodeFactory = require("./HookCodeFactory");
class SyncHookCodeFactory extends HookCodeFactory {
  content() {
    return this.callTapsSeries();
  }
}
let factory = new SyncHookCodeFactory();
class SyncHook extends Hook {
  compile(options) {
    // 这一步的作用:hook._x = [fn1, fn2, fn3]
    factory.setUp(this, options);
    // 创建代码
    return factory.create(options);
  }
}

module.exports = SyncHook;

Hook.js

const { SYNC } = require("./types");
class Hook {
  constructor(args) {
    this.args = Array.isArray(args) ? args : []; // 参数列表
    this._x = null;
    this.taps = []; // 用来存放回调函数
    this.call = CALL_DELEGATE;
  }
  tap(options, fn) {
    this._tap(SYNC, options, fn);
  }
  _tap(type, options, fn) {
    if (typeof options === "string") {
      options = { name: options };
    }
    const tapInfo = { ...options, type, fn };
    this._insert(tapInfo);
  }
  _insert(tapInfo) {
    this.taps.push(tapInfo);
  }
  compile(options) {
    throw new Error("由于每个子类的编译方式不同，此方法需要由子类实现");
  }
  _createCall(type) {
    return this.compile({
      taps: this.taps,
      args: this.args,
      type,
    });
  }
}

const CALL_DELEGATE = function (...args) {
  // 动态创建call方法，this.call = 生成的一个函数
  this.call = this._createCall(SYNC);
  return this.call(...args);
};
module.exports = Hook;

types.js

const SYNC = "SYNC";
exports.SYNC = SYNC;

HookCodeFactory.js

const { SYNC } = require("./types");
class HookCodeFactory {
  setUp(hookInstance, options) {
    // this._x = [fn1, fn2, fn3]
    hookInstance._x = options.taps.map((tapInfo) => tapInfo.fn);
  }
  init(options) {
    this.options = options;
  }
  args() {
    const { args } = this.options;
    return args.join(",");
  }
  header() {
    let code = "";
    code += `var _x = this._x;\n`;
    console.log(code, "header");
    return code;
  }
  create(options) {
    this.init(options);
    let fn;
    switch (this.options.type) {
      case SYNC:
        fn = new Function(this.args(), this.header() + this.content());
        break;
      default:
        break;
    }
    return fn;
  }
  callTapsSeries() {
    const { taps } = this.options;
    if (!taps.length) return "";
    let code = "";
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i);
      code += content;
    }
    console.log(code, "content");
    return code;
  }
  callTaps(tapIndex) {
    let code = "";
    code += `var _fn${tapIndex} = _x[${tapIndex}];\n`;
    const tapInfo = this.options.taps[tapIndex];
    switch (tapInfo.type) {
      case SYNC:
        code += `_fn${tapIndex}(${this.args()});\n`;
        break;
      default:
        break;
    }
    return code;
  }
}

module.exports = HookCodeFactory;

AsyncParallelHook Async 实现

AsyncParallelHook.js

const Hook = require("./Hook");
const HookCodeFactory = require("./HookCodeFactory");
class SyncHookCodeFactory extends HookCodeFactory {
  content() {
    return this.callTapsParallel();
  }
}
let factory = new SyncHookCodeFactory();
class AsyncParallelHook extends Hook {
  compile(options) {
    factory.setUp(this, options); // 这一步的作用:hook._x = [fn1, fn2, fn3]
    return factory.create(options);
  }
}

module.exports = AsyncParallelHook;

Hook.js

js{1,8,13-15,43-46}

const { SYNC, ASYNC } = require("./types");
class Hook {
  constructor(args) {
    this.args = Array.isArray(args) ? args : []; // 参数列表
    this._x = null;
    this.taps = []; // 用来存放回调函数
    this.call = CALL_DELEGATE;
    this.callAsync = CALL_ASYNC_DELEGATE;
  }
  tap(options, fn) {
    this._tap(SYNC, options, fn);
  }
  tapAsync(options, fn) {
    this._tap(ASYNC, options, fn);
  }
  _tap(type, options, fn) {
    if (typeof options === "string") {
      options = { name: options };
    }
    const tapInfo = { ...options, type, fn };
    this._insert(tapInfo);
  }
  _insert(tapInfo) {
    this.taps.push(tapInfo);
  }
  compile(options) {
    throw new Error("由于每个子类的编译方式不同，此方法需要由子类实现");
  }
  _createCall(type) {
    return this.compile({
      taps: this.taps,
      args: this.args,
      type,
    });
  }
}

const CALL_DELEGATE = function (...args) {
  // 动态创建call方法，this.call = 生成的一个函数
  this.call = this._createCall(SYNC);
  return this.call(...args);
};
const CALL_ASYNC_DELEGATE = function (...args) {
  this.call = this._createCall(ASYNC);
  return this.call(...args);
};
module.exports = Hook;

types.js

js{2,4}

const SYNC = "SYNC";
const ASYNC = "ASYNC";
exports.SYNC = SYNC;
exports.ASYNC = ASYNC;

HookCodeFactory.js

js{1,11-20,34-39,46-57,77-82}

const { SYNC, ASYNC } = require("./types");
class HookCodeFactory {
  setUp(hookInstance, options) {
    // this._x = [fn1, fn2, fn3]
    hookInstance._x = options.taps.map((tapInfo) => tapInfo.fn);
  }
  init(options) {
    this.options = options;
  }
  args(options = {}) {
    // option：向前还是向后添加参数
    const { after, before } = options;
    let allArgs = this.options.args || [];
    if (before) {
      allArgs = [before, ...allArgs];
    }
    if (after) {
      allArgs = [...allArgs, after];
    }
    return allArgs.join(","); // before,name,age,after
  }
  header() {
    let code = "";
    code += `var _x = this._x;\n`;
    return code;
  }
  create(options) {
    this.init(options);
    let fn;
    switch (this.options.type) {
      case SYNC:
        fn = new Function(this.args(), this.header() + this.content());
        break;
      case ASYNC:
        fn = new Function(
          this.args({ after: "_callback" }),
          this.header() + this.content()
        );
        break;
      default:
        break;
    }
    return fn;
  }
  // 并行方式
  callTapsParallel() {
    const taps = this.options.taps;
    let code = `var _counter = ${taps.length};\n
    var _done = (function () {
      _callback();
    });\n`;
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i);
      code += content;
    }
    return code;
  }
  // 串行方式
  callTapsSeries() {
    const { taps } = this.options;
    if (!taps.length) return "";
    let code = "";
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i);
      code += content;
    }
    return code;
  }
  callTaps(tapIndex) {
    let code = "";
    code += `var _fn${tapIndex} = _x[${tapIndex}];\n`;
    const tapInfo = this.options.taps[tapIndex];
    switch (tapInfo.type) {
      case SYNC:
        code += `_fn${tapIndex}(${this.args()});\n`;
        break;
      case ASYNC:
        code += ` var _fn${tapIndex} = _x[${tapIndex}];
        _fn${tapIndex}(${this.args()}, (function () {
          if (--_counter === 0) _done();
        }));`;
        break;
      default:
        break;
    }
    return code;
  }
}

module.exports = HookCodeFactory;

AsyncParallelHook Promise 实现

AsyncParallelHook.js

js{4-6}

const Hook = require("./Hook");
const HookCodeFactory = require("./HookCodeFactory");
class SyncHookCodeFactory extends HookCodeFactory {
  content({ onDone }) {
    return this.callTapsParallel({ onDone })
  }
}
let factory = new SyncHookCodeFactory();
class AsyncParallelHook extends Hook {
  compile(options) {
    factory.setUp(this, options); // 这一步的作用:hook._x = [fn1, fn2, fn3]
    return factory.create(options);
  }
}

module.exports = AsyncParallelHook;

Hook.js

js{1,9,17-19,51-54}

const { SYNC, ASYNC, PROMISE } = require("./types");
class Hook {
  constructor(args) {
    this.args = Array.isArray(args) ? args : []; // 参数列表
    this._x = null;
    this.taps = []; // 用来存放回调函数
    this.call = CALL_DELEGATE;
    this.callAsync = CALL_ASYNC_DELEGATE;
    this.promise = PROMISE_DELEGATE;
  }
  tap(options, fn) {
    this._tap(SYNC, options, fn);
  }
  tapAsync(options, fn) {
    this._tap(ASYNC, options, fn);
  }
  tapPromise(options, fn) {
    this._tap(PROMISE, options, fn);
  }
  _tap(type, options, fn) {
    if (typeof options === "string") {
      options = { name: options };
    }
    const tapInfo = { ...options, type, fn };
    this._insert(tapInfo);
  }
  _insert(tapInfo) {
    this.taps.push(tapInfo);
  }
  compile(options) {
    throw new Error("由于每个子类的编译方式不同，此方法需要由子类实现");
  }
  _createCall(type) {
    return this.compile({
      taps: this.taps,
      args: this.args,
      type,
    });
  }
}

const CALL_DELEGATE = function (...args) {
  // 动态创建call方法，this.call = 生成的一个函数
  this.call = this._createCall(SYNC);
  return this.call(...args);
};
const CALL_ASYNC_DELEGATE = function (...args) {
  this.call = this._createCall(ASYNC);
  return this.call(...args);
};
const PROMISE_DELEGATE = function (...args) {
  this.call = this._createCall(PROMISE);
  return this.call(...args);
};
module.exports = Hook;

types.js

js{3,6}

const SYNC = "SYNC";
const ASYNC = "ASYNC";
const PROMISE = "PROMISE";
exports.SYNC = SYNC;
exports.ASYNC = ASYNC;
exports.PROMISE = PROMISE;

HookCodeFactory.js

js{1,34,40,43-52,59,63,96-104}

const { SYNC, ASYNC } = require("./types");
class HookCodeFactory {
  setUp(hookInstance, options) {
    // this._x = [fn1, fn2, fn3]
    hookInstance._x = options.taps.map((tapInfo) => tapInfo.fn);
  }
  init(options) {
    this.options = options;
  }
  args(options = {}) {
    // option：向前还是向后添加参数
    const { after, before } = options;
    let allArgs = this.options.args || [];
    if (before) {
      allArgs = [before, ...allArgs];
    }
    if (after) {
      allArgs = [...allArgs, after];
    }
    return allArgs.join(","); // before,name,age,after
  }
  header() {
    let code = "";
    code += `var _x = this._x;\n`;
    return code;
  }
  create(options) {
    this.init(options);
    let fn;
    switch (this.options.type) {
      case SYNC:
        fn = new Function(
          this.args(),
          this.header() + this.content({ onDone: () => `_callback();\n` })
        )
        break
      case ASYNC:
        fn = new Function(
          this.args({ after: '_callback' }),
          this.header() + this.content({ onDone: () => `_callback();\n` })
        )
        break
      case PROMISE:
        const tapContent = this.content({ onDone: () => `_resolve();\n` });
        let content = `return new Promise((_resolve, _reject) => {
          ${tapContent}
        })`
        fn = new Function(
          this.args(),
          this.header() + content
        )
        break
      default:
        break;
    }
    return fn;
  }
  // 并行方式
  callTapsParallel({ onDone }) {
    const taps = this.options.taps;
    let code = `var _counter = ${taps.length};\n
    var _done = (function () {
      ${onDone()};
    });\n`
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i);
      code += content;
    }
    return code;
  }
  // 串行方式
  callTapsSeries() {
    const { taps } = this.options;
    if (!taps.length) return "";
    let code = "";
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i);
      code += content;
    }
    return code;
  }
  callTaps(tapIndex) {
    let code = "";
    code += `var _fn${tapIndex} = _x[${tapIndex}];\n`;
    const tapInfo = this.options.taps[tapIndex];
    switch (tapInfo.type) {
      case SYNC:
        code += `_fn${tapIndex}(${this.args()});\n`;
        break;
      case ASYNC:
        code += ` var _fn${tapIndex} = _x[${tapIndex}];
        _fn${tapIndex}(${this.args()}, (function () {
          if (--_counter === 0) _done();
        }));`;
        break;
      case PROMISE:
        code += `
        var _fn${tapIndex} = _x[${tapIndex}];
        var _promise${tapIndex} = _fn${tapIndex}(${this.args()});
        _promise${tapIndex}.then((function (_result${tapIndex}) {
          if (--_counter === 0) _done();
        }));
        `
        break
      default:
        break;
    }
    return code;
  }
}

module.exports = HookCodeFactory;

interceptor

所有的钩子都提供了额外的拦截器 API
- register：(tap: Tap) => Tap | undefined , 每注册一个函数都会触发 interceptor 上的 register,下一个拦截器的 register 函数得到的参数取决于上一个 register 返回的值，所以最好返回一个 tap 钩子
- call: (...args) => void, 当钩子触发之前(就是 call())触发这个函数，可以访问钩子的参数，多个钩子执行一次，每个拦截器执行一次
- tap: (tap: Tap) => void, 每个钩子执行前会触发这个函数
Context(上下文): 插件和拦截器都可以选择加入一个可选的 context 对象, 这个可以被用于传递随意的值到队列中的插件和拦截器

使用

const { SyncHook } = require("../tapable");
const hook = new SyncHook(["name"]);
hook.intercept({
  register(tapInfo) {
    // 注册拦截器，当通过tap，tapAsync, promise的时候触发
    console.log("intercept1 register", tapInfo.name);
    return tapInfo;
  },
  call(name) {
    // 调用call，callAsync,promise的时候触发，所有回调只触发一次
    console.log("intercept1 call", name);
  },
  tap(tapInfo) {
    // 调用回调的时候每个回调都会触发
    console.log("intercept1 tap", tapInfo.name);
  },
});
hook.intercept({
  register(tapInfo) {
    // 注册拦截器，当通过tap，tapAsync, promise的时候触发
    console.log("intercept2 register", tapInfo.name);
  },
  call(name) {
    // 调用call，callAsync,promise的时候触发
    console.log("intercept2 call", name);
  },
  tap(tapInfo) {
    // 调用回调的时候触发
    console.log("intercept2 tap", tapInfo.name);
  },
});
hook.tap("1", (name) => {
  console.log("1", name);
});
hook.tap("2", (name) => {
  console.log("2", name);
});
hook.call("test");
/* intercept1 register 1
intercept2 register 1
intercept1 register 2
intercept2 register 2
intercept1 call test
intercept2 call test
intercept1 tap 1
intercept2 tap 1
1 test
intercept1 tap 2
intercept2 tap 2
2 test */

_createCall 生成的代码

(function anonymous(name, age) {
  var _x = this._x;
  var _taps = this.taps;

  var _interceptors = this.interceptors;
  _interceptors[0].call(name, age);
  _interceptors[1].call(name, age);

  var _tap0 = _taps[0];
  _interceptors[0].tap(_tap0);
  _interceptors[1].tap(_tap0);
  var _fn0 = _x[0];
  _fn0(name, age);

  var _tap1 = _taps[1];
  _interceptors[0].tap(_tap1);
  _interceptors[1].tap(_tap1);
  var _fn1 = _x[1];
  _fn1(name, age);
});

实现

Hook.js

js{10,12-14,29,32-37,49}

const { SYNC, ASYNC, PROMISE } = require("./types");
class Hook {
  constructor(args) {
    this.args = Array.isArray(args) ? args : []; // 参数列表
    this.taps = []; // 用来存放回调函数
    this._x = null;
    this.call = CALL_DELEGATE;
    this.callAsync = CALL_ASYNC_DELEGATE;
    this.promise = PROMISE_DELEGATE;
    this.interceptors = []; // 拦截器数组
  }
  intercept(interceptor) {
    this.interceptors.push(interceptor);
  }
  tap(options, fn) {
    this._tap(SYNC, options, fn);
  }
  tapAsync(options, fn) {
    this._tap(ASYNC, options, fn);
  }
  tapPromise(options, fn) {
    this._tap(PROMISE, options, fn);
  }
  _tap(type, options, fn) {
    if (typeof options === "string") {
      options = { name: options };
    }
    const tapInfo = { ...options, type, fn };
    this.runRegisterInterceptors(tapInfo);
    this._insert(tapInfo);
  }
  runRegisterInterceptors(tapInfo) {
    // 运行注册拦截器
    for (const interceptor of this.interceptors) {
      if (interceptor.register) interceptor.register(tapInfo);
    }
  }
  _insert(tapInfo) {
    this.taps.push(tapInfo);
  }
  compile(options) {
    throw new Error("由于每个子类的编译方式不同，此方法需要由子类实现");
  }
  _createCall(type) {
    return this.compile({
      taps: this.taps,
      args: this.args,
      type,
      interceptors: this.interceptors,
    });
  }
}

const CALL_DELEGATE = function (...args) {
  // 动态创建call方法，this.call = 生成的一个函数
  this.call = this._createCall(SYNC);
  return this.call(...args);
};
const CALL_ASYNC_DELEGATE = function (...args) {
  this.call = this._createCall(ASYNC);
  return this.call(...args);
};
const PROMISE_DELEGATE = function (...args) {
  this.promise = this._createCall(PROMISE);
  return this.promise(...args);
};
module.exports = Hook;

HookCodeFactory.js

js{25-34,94-103}

const { SYNC, ASYNC, PROMISE } = require('./types')
class HookCodeFactory {
  setUp(hookInstance, options) {
    // this._x = [fn1, fn2, fn3]
    hookInstance._x = options.taps.map(tapInfo => tapInfo.fn);
  }
  init(options) {
    this.options = options
  }
  args(options = {}) {
    // option：向前还是向后添加参数
    const { after, before } = options;
    let allArgs = this.options.args || []
    if (before) {
      allArgs = [before, ...allArgs]
    }
    if (after) {
      allArgs = [...allArgs, after]
    }
    return allArgs.join(',') // before,name,age,after
  }
  header() {
    let code = '';
    code += `var _x = this._x;\n`;
    const { interceptors = [] } = this.options;
    if (interceptors.length) {
      code += `var _taps = this.taps;\n`;
      code += `var _interceptors = this.interceptors;\n`;
      for (let i = 0; i < interceptors.length; i++) {
        if (interceptors[i].call) {
          code += `_interceptors[${i}].call(${this.args()});\n`
        }
      }
    }
    return code
  }
  create(options) { // 创建代码
    this.init(options);
    let fn;
    switch (this.options.type) {
      case SYNC:
        fn = new Function(
          this.args(),
          this.header() + this.content({ onDone: () => `_callback();\n` })
        )
        break
      case ASYNC:
        fn = new Function(
          this.args({ after: '_callback' }),
          this.header() + this.content({ onDone: () => `_callback();\n` })
        )
        break
      case PROMISE:
        const tapContent = this.content({ onDone: () => `_resolve();\n` });
        let content = `return new Promise((_resolve, _reject) => {
          ${tapContent}
        })`
        fn = new Function(
          this.args(),
          this.header() + content
        )
        break
      default:
        break
    }
    return fn
  }
  // 并行方式
  callTapsParallel({ onDone }) {
    const taps = this.options.taps;
    let code = `var _counter = ${taps.length};\n
    var _done = (function () {
      ${onDone()};
    });\n`
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i)
      code += content
    }
    return code
  }
  // 串行方式
  callTapsSeries() {
    const { taps } = this.options;
    if (!taps.length) return ''
    let code = '';
    for (let i = 0; i < taps.length; i++) {
      const content = this.callTaps(i);
      code += content
    }
    return code
  }
  callTaps(tapIndex) {
    let code = '';
    const { interceptors = [] } = this.options;
    if (interceptors.length) {
      code += `var _tap${tapIndex} = _taps[${tapIndex}];\n`
      for (let i = 0; i < interceptors.length; i++) {
        if (interceptors[i].tap) {
          code += `_interceptors[${i}].tap(_tap${tapIndex});\n`
        }
      }
    }
    code += `var _fn${tapIndex} = _x[${tapIndex}];\n`;
    // 每种类型对应的代码参考call文件夹
    const tapInfo = this.options.taps[tapIndex];
    switch (tapInfo.type) {
      case SYNC:
        code += `_fn${tapIndex}(${this.args()});\n`;
        break
      case ASYNC:
        code += ` var _fn${tapIndex} = _x[${tapIndex}];
        _fn${tapIndex}(${this.args()}, (function () {
          if (--_counter === 0) _done();
        }));`
        break
      case PROMISE:
        code += `
        var _fn${tapIndex} = _x[${tapIndex}];
        var _promise${tapIndex} = _fn${tapIndex}(${this.args()});
        _promise${tapIndex}.then((function (_result${tapIndex}) {
          if (--_counter === 0) _done();
        }));
        `
        break
      default:
        break
    }

    return code
  }
}

module.exports = HookCodeFactory

HookMap

Hook 的映射 HookMapUse.js

const { SyncHook, HookMap } = require("../tapable");

const hookMap = new HookMap(() => new SyncHook(["name"]));
hookMap.for("key1").tap("plugin1", (name) => console.log("key1", name));
hookMap.for("key1").tap("plugin2", (name) => console.log("key1", name));

hookMap.for("key2").tap("plugin1", (name) => console.log("key2", name));
hookMap.for("key2").tap("plugin2", (name) => console.log("key2", name));

const hook1 = hookMap.get("key1");
const hook2 = hookMap.get("key2");
hook1.call("test1");
hook2.call("test2");
/*
key1 test1
key1 test1
key2 test2
key2 test2
*/

HookMap.js

class HookMap {
  constructor(factory) {
    this.map = new Map();
    this.factory = factory; // new SyncHook(['name'])
  }
  get(key) {
    return this.map.get(key);
  }
  for(key) {
    let hook = this.get(key);
    if (!hook) {
      hook = this.factory();
      this.map.set(key, hook);
    }
    return hook;
  }
}

module.exports = HookMap;

Stage

tap 回调排序，数值越小先执行

StageUse.js

const { SyncHook } = require("tapable");
const hook = new SyncHook(["name"]);
hook.tap({ name: "1", stage: 1 }, () => console.log(1));
hook.tap({ name: "5", stage: 5 }, () => console.log(5));
hook.tap({ name: "2", stage: 2 }, () => console.log(2));

hook.call("test");
/*
1
2
5 */

Hook.js

js{39-62}

const { SYNC, ASYNC, PROMISE } = require("./types");
class Hook {
  constructor(args) {
    this.args = Array.isArray(args) ? args : []; // 参数列表
    this.taps = []; // 用来存放回调函数
    this._x = null;
    this.call = CALL_DELEGATE;
    this.callAsync = CALL_ASYNC_DELEGATE;
    this.promise = PROMISE_DELEGATE;
    this.interceptors = []; // 拦截器数组
  }
  intercept(interceptor) {
    this.interceptors.push(interceptor);
  }
  tap(options, fn) {
    this._tap(SYNC, options, fn);
  }
  tapAsync(options, fn) {
    this._tap(ASYNC, options, fn);
  }
  tapPromise(options, fn) {
    this._tap(PROMISE, options, fn);
  }
  _tap(type, options, fn) {
    if (typeof options === "string") {
      options = { name: options };
    }
    const tapInfo = { ...options, type, fn };
    this.runRegisterInterceptors(tapInfo);
    this._insert(tapInfo);
  }
  runRegisterInterceptors(tapInfo) {
    // 运行注册拦截器
    for (const interceptor of this.interceptors) {
      if (interceptor.register) interceptor.register(tapInfo);
    }
  }
  _insert(tapInfo) {
    // stage实现
    // [1,3,5] => 插入2 => [1,2,3,5]
    let stage = 0;
    if (typeof tapInfo.stage === "number") {
      stage = tapInfo.stage || 0;
    }
    let len = this.taps.length;
    while (len > 0) {
      /**
       * 第一次循环 len = 2 x = 5, taps => [1,3,5,5] continue
       * 第二次循环 len = 1 x = 3, taps => [1,3,3,5] continue
       * 第三次循环 len = 0 x = 1, taps => [1,1,3,5] len = 1 break
       * [1,2,3,5]
       */
      len--;
      let x = this.taps[len];
      this.taps[len + 1] = x;
      if (x.stage > stage) {
        continue;
      }
      len++;
      break;
    }
    this.taps[len] = tapInfo;
  }
  compile(options) {
    throw new Error("由于每个子类的编译方式不同，此方法需要由子类实现");
  }
  _createCall(type) {
    return this.compile({
      taps: this.taps,
      args: this.args,
      type,
      interceptors: this.interceptors,
    });
  }
}

const CALL_DELEGATE = function (...args) {
  // 动态创建call方法，this.call = 生成的一个函数
  this.call = this._createCall(SYNC);
  return this.call(...args);
};
const CALL_ASYNC_DELEGATE = function (...args) {
  this.call = this._createCall(ASYNC);
  return this.call(...args);
};
const PROMISE_DELEGATE = function (...args) {
  this.promise = this._createCall(PROMISE);
  return this.promise(...args);
};
module.exports = Hook;

Before

在 xxx 之前，可以是字符串或者数组

Before.js

const { SyncHook } = require("tapable");
const hook = new SyncHook(["name"]);
hook.tap({ name: "1", stage: 1 }, () => console.log(1));
hook.tap({ name: "5", stage: 5 }, () => console.log(5));
hook.tap({ name: "2", stage: 2 }, () => console.log(2));
hook.tap({ name: "4", stage: 4 }, () => console.log(4));
hook.tap({ name: "7", stage: 7 }, () => console.log(7));
hook.tap({ name: "6", before: ["4", "7"], stage: 6 }, () => console.log(6));

hook.call("test");
/* 1
2
6
4
5
7 */

Hook.js

js{39-45,63-71}

const { SYNC, ASYNC, PROMISE } = require("./types");
class Hook {
  constructor(args) {
    this.args = Array.isArray(args) ? args : []; // 参数列表
    this.taps = []; // 用来存放回调函数
    this._x = null;
    this.call = CALL_DELEGATE;
    this.callAsync = CALL_ASYNC_DELEGATE;
    this.promise = PROMISE_DELEGATE;
    this.interceptors = []; // 拦截器数组
  }
  intercept(interceptor) {
    this.interceptors.push(interceptor);
  }
  tap(options, fn) {
    this._tap(SYNC, options, fn);
  }
  tapAsync(options, fn) {
    this._tap(ASYNC, options, fn);
  }
  tapPromise(options, fn) {
    this._tap(PROMISE, options, fn);
  }
  _tap(type, options, fn) {
    if (typeof options === "string") {
      options = { name: options };
    }
    const tapInfo = { ...options, type, fn };
    this.runRegisterInterceptors(tapInfo);
    this._insert(tapInfo);
  }
  runRegisterInterceptors(tapInfo) {
    // 运行注册拦截器
    for (const interceptor of this.interceptors) {
      if (interceptor.register) interceptor.register(tapInfo);
    }
  }
  _insert(tapInfo) {
    // before实现
    let before;
    if (Array.isArray(tapInfo.before)) {
      before = new Set(tapInfo.before);
    } else if (typeof tapInfo.before === "string") {
      before = new Set([tapInfo.before]);
    }
    // stage实现
    // [1,3,5] => 插入2 => [1,2,3,5]
    let stage = 0;
    if (typeof tapInfo.stage === "number") {
      stage = tapInfo.stage || 0;
    }
    let len = this.taps.length;
    while (len > 0) {
      /**
       * 第一次循环 len = 2 x = 5, taps => [1,3,5,5] continue
       * 第二次循环 len = 1 x = 3, taps => [1,3,3,5] continue
       * 第三次循环 len = 0 x = 1, taps => [1,1,3,5] len = 1 break
       * [1,2,3,5]
       */
      len--;
      let x = this.taps[len];
      this.taps[len + 1] = x;
      if (before) {
        if (before.has(x.name)) {
          before.delete(x.name);
          continue;
        }
        if (before.size > 0) {
          continue;
        }
      }
      if (x.stage > stage) {
        continue;
      }
      len++;
      break;
    }
    this.taps[len] = tapInfo;
  }
  compile(options) {
    throw new Error("由于每个子类的编译方式不同，此方法需要由子类实现");
  }
  _createCall(type) {
    return this.compile({
      taps: this.taps,
      args: this.args,
      type,
      interceptors: this.interceptors,
    });
  }
}

const CALL_DELEGATE = function (...args) {
  // 动态创建call方法，this.call = 生成的一个函数
  this.call = this._createCall(SYNC);
  return this.call(...args);
};
const CALL_ASYNC_DELEGATE = function (...args) {
  this.call = this._createCall(ASYNC);
  return this.call(...args);
};
const PROMISE_DELEGATE = function (...args) {
  this.promise = this._createCall(PROMISE);
  return this.promise(...args);
};
module.exports = Hook;
